How to Replace a Fridge Freezer Flap Hinge - Indesit

Make and Model of Fridge Freezer Used in This Video

Indesit IBD5515S1 (769991603461)
Indesit IBD5515S1 (869991603460)

Part Used in This Video

Fridge and Freezer Flap Hinge

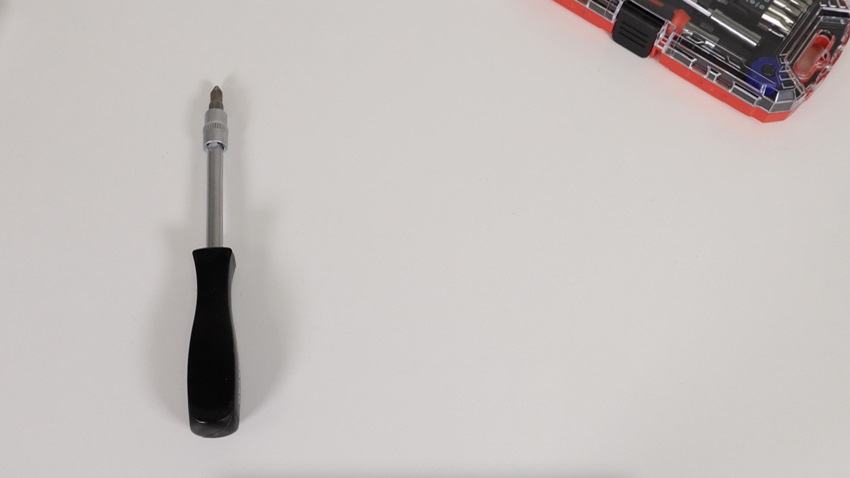

1. Tools needed

All you’ll need for this is a Phillips screwdriver.

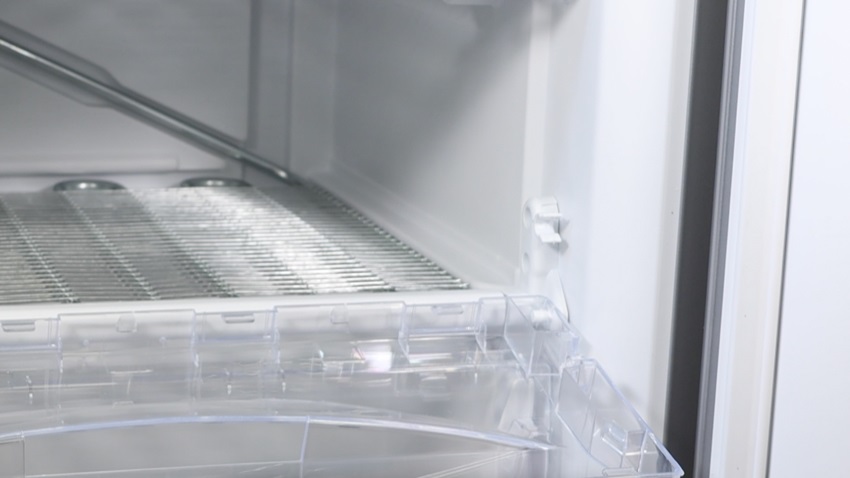

2. Remove old hinge

Firstly, pull the front flap down and remove the two screws in the hinge that needs removing.

Then, gently manoeuvre the hinge from the two holes in the side of the freezer section and pull away.

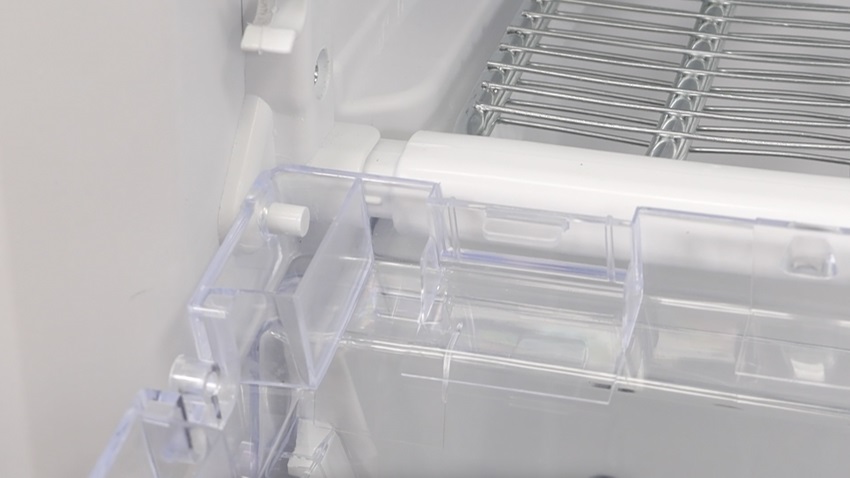

3. Install new hinge

Using the small circular hole on the left side of the front flap, connect the front flap to the existing hinge on the left side of the freezer.

Connect the new hinge to the right side of the front freezer flap using the small hole on the other side. Then, using the two back connectors on the hinge, gently insert these into the side of the freezer and the lower connector into the freezer tray.

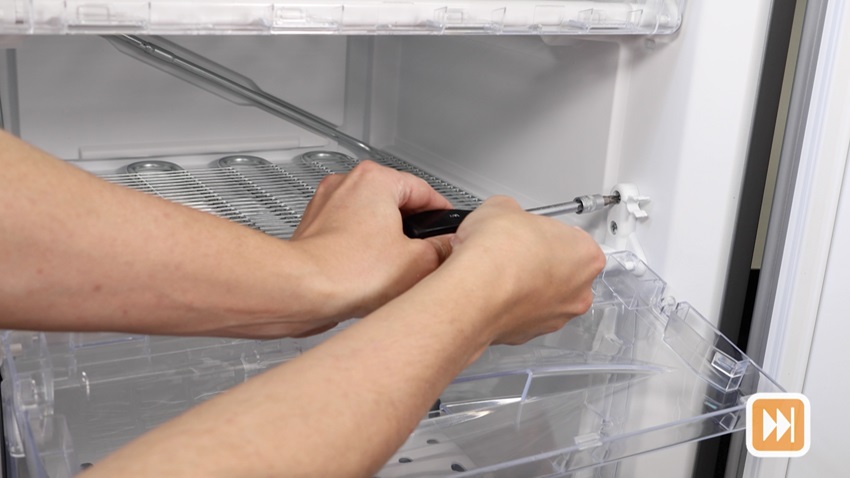

Screw the two screws into your new hinge and make sure the front flap opens and closes correctly.

That's it, your new fridge freezer hinge is all set to go!
