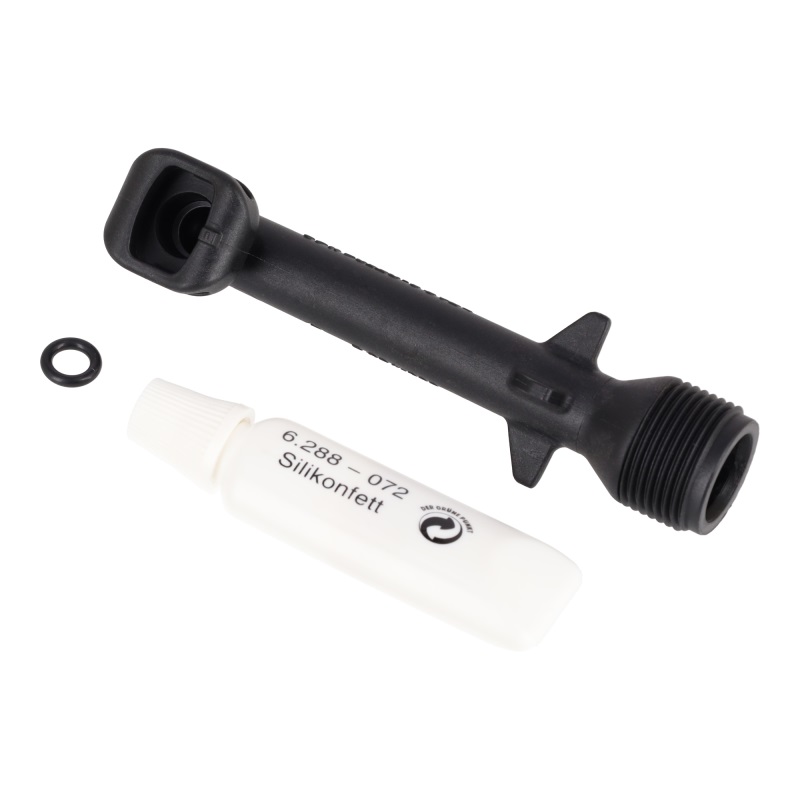

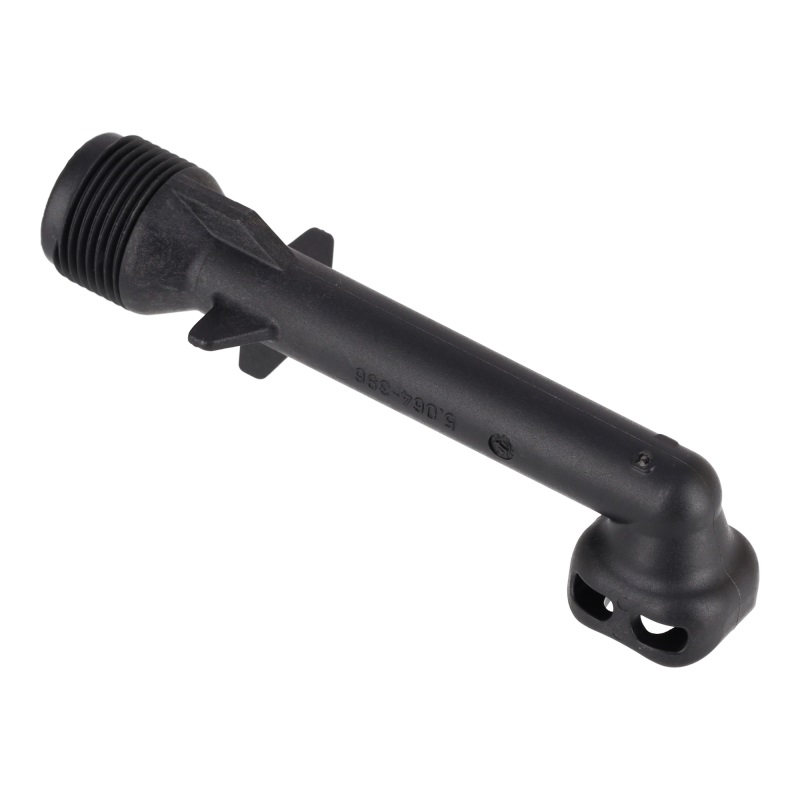

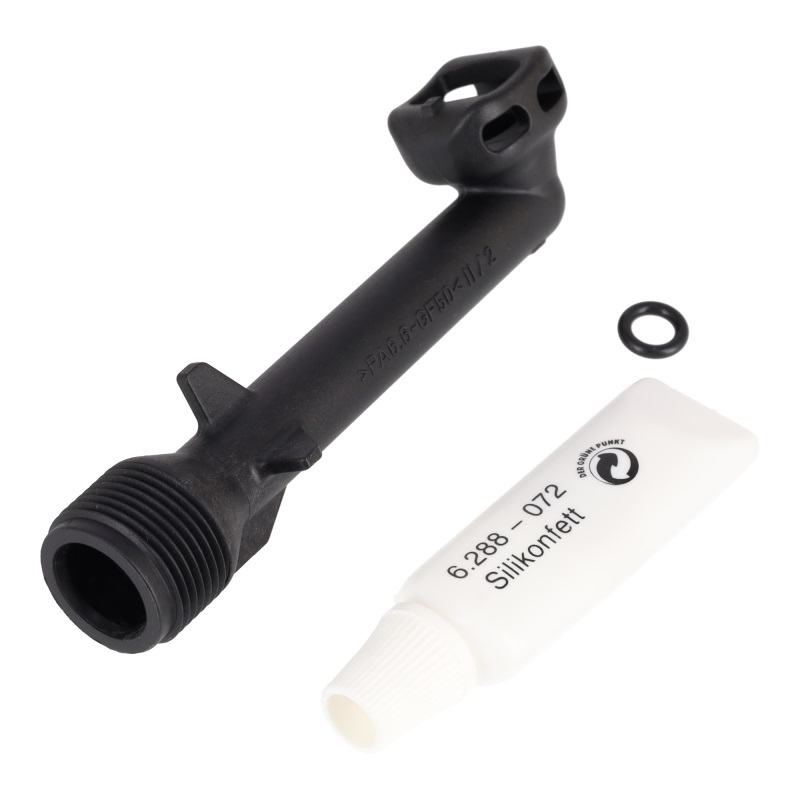

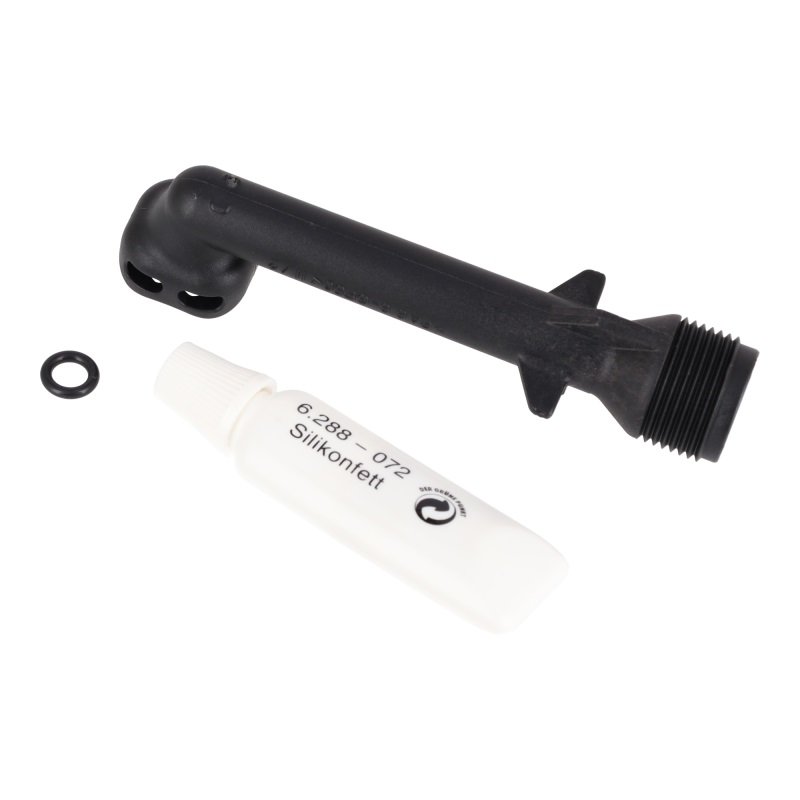

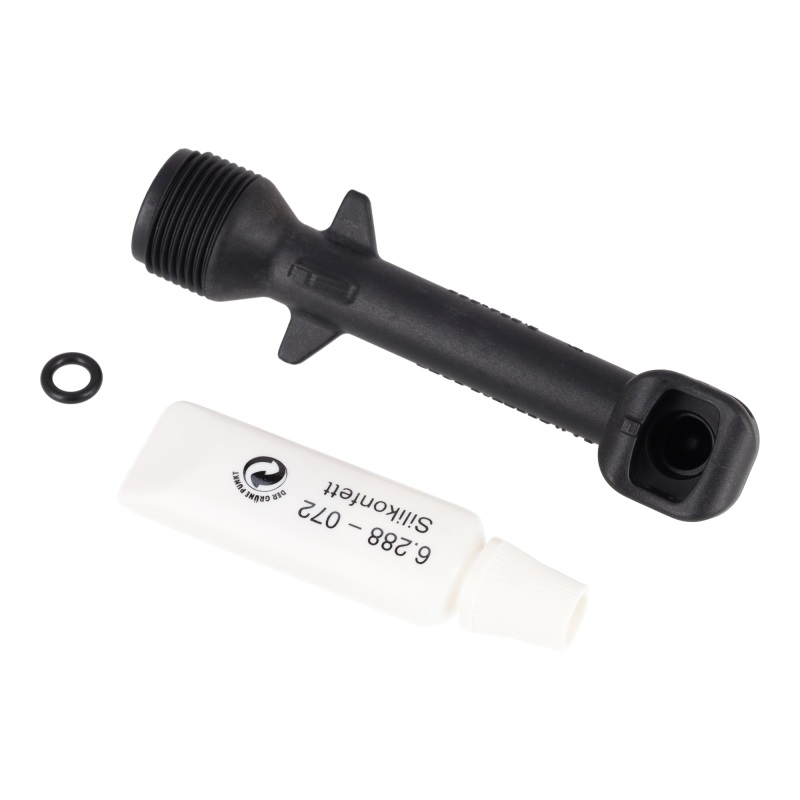

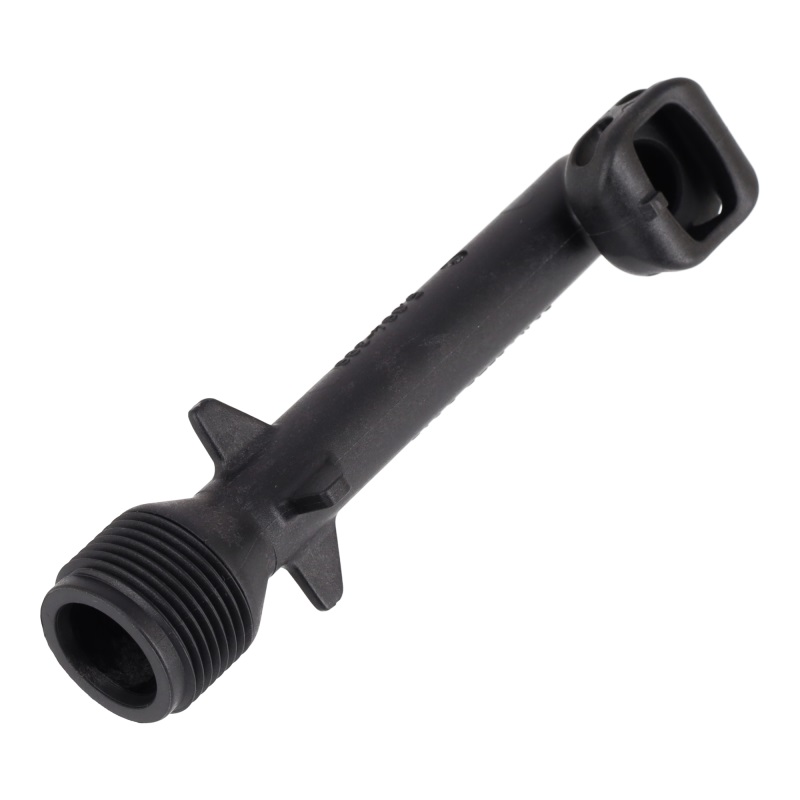

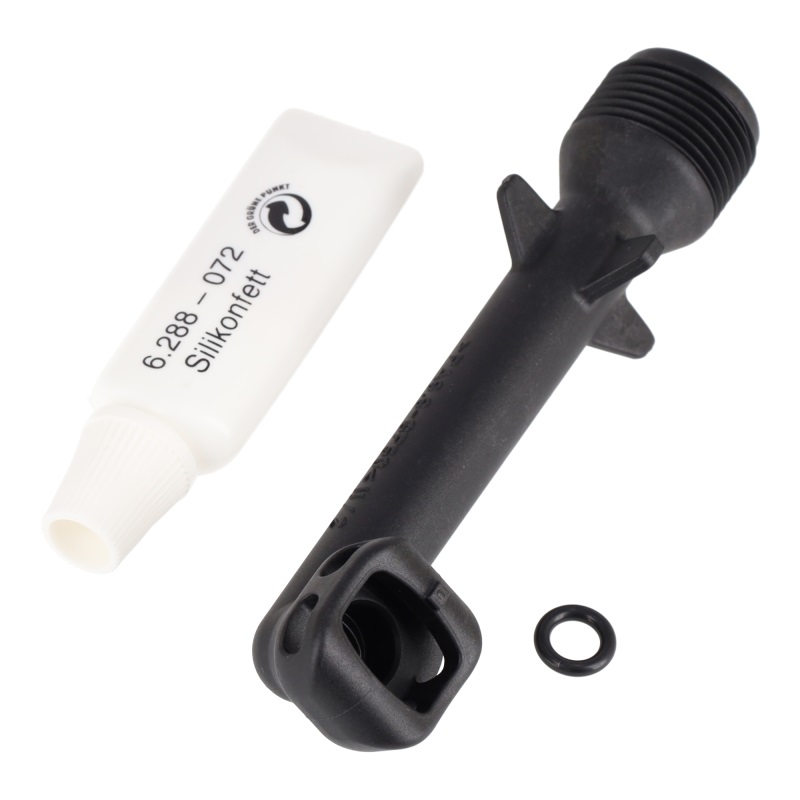

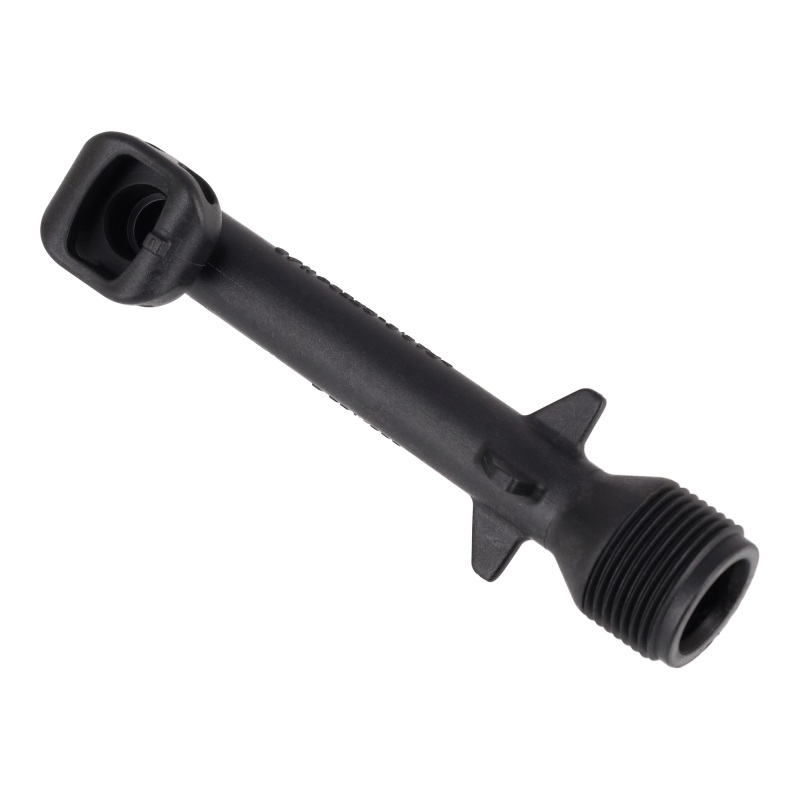

How does the outlet elbow connector work?
Crafted from premium materials, this outlet elbow connection is engineered to be resistant to water pressure, heat, and other harsh conditions. It also connects the high-pressure hose to the spray gun or wand and allows the pressurised water to flow from the pump to the nozzle.
What damages your outlet elbow connector?
Your outlet elbow connector can be damaged by high water pressure, frequent usage, and exposure to environmental factors. The intense pressure generated by the pressure washer can weaken the connection over time.
Frequent use increases the chances of wear and tear on the connector. Additionally, exposure to extreme temperatures, moisture, and chemicals can gradually degrade the connection. Factors like sunlight, humidity, and corrosive cleaning agents can also impact its longevity.
Is it a genuine spare part?
This outlet elbow connector is a genuine Karcher pressure washer spare part.
Specification:
- Genuine spare part
Manufacturers Part Number:
- 4.063-914.0
Alternative Part Numbers:
- 40639140
- 5.064-396.0
- 50643960
EAN Number:
- 4039784974296
Will this part fit your appliance?
Use our compatibility checker, Click here.
Finding your model number:
TBC
Safety note:
Warning: Always unplug any appliance from the electricity supply before carrying out any work or testing on it.
Latest Product Review(s)
Read All Reviews
15 Customer Review(s)
Equal quality to original. Revived otherwise totally useable pressure washer

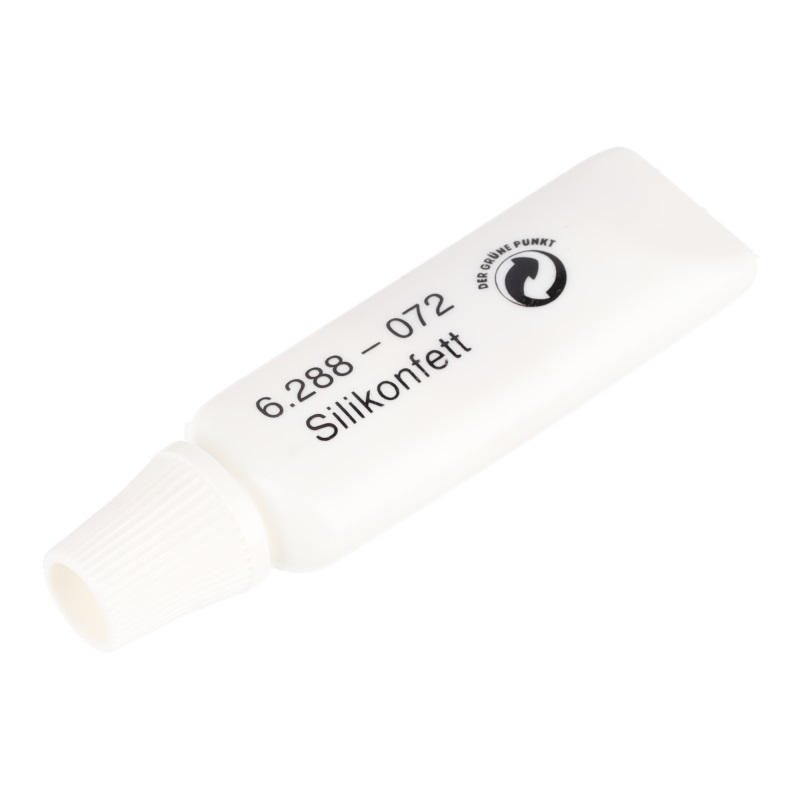

Karcher K2 Pressure washer that I only use a few times a year had developed a leak on the high pressure side. First noticed after the motor was kicking in occasionally without using the lance trigger. Then got worse with water leaking from the bottom of the casing. The old part had a split coincident with the mould line just behind the section that is threaded to take the outlet hose connection.. Simply a case of using a TX15 (I think) driver to undo all screws holding case together and then splitting casing apart. I applied a good amount of the supplied lubricant to the area around where the o-rings sit at inlet and outlet of the elbow. There was a small O-ring in the pack so I put a new one in place of the one on the motor unit. I used a pick hook to remove the old one but could probably have pried off with another tool taking care not to damage mating surfaces. The connector fits to the pump unit using a bayonet similar to the connection between lance attachments so you just twist it on. Leak cured so hopefully a few more years of occasional use.
By Max Taylor - Bristol
16th Nov 2024
Easy fix

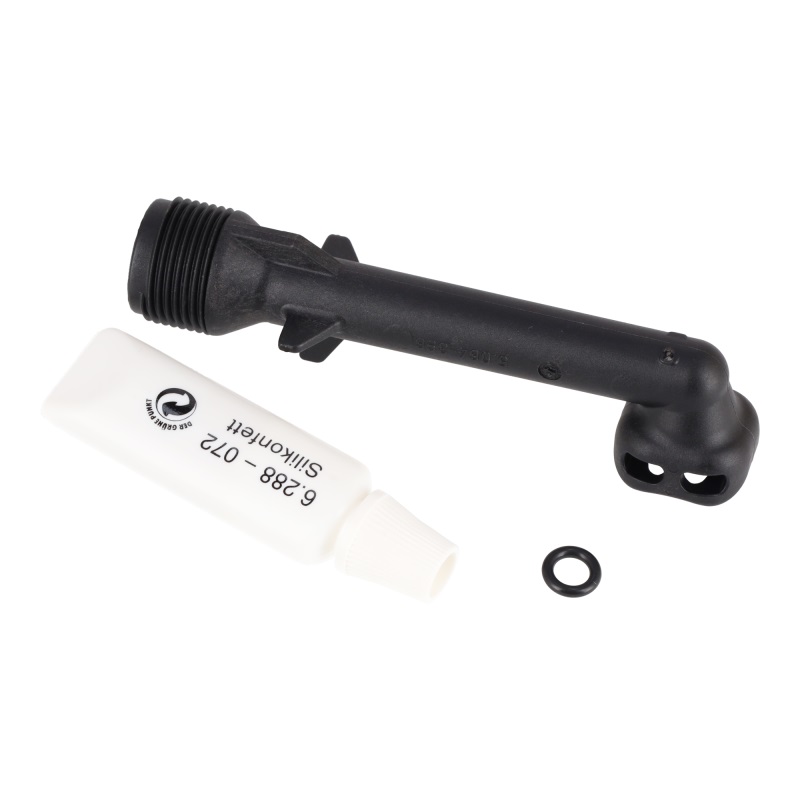

The spare was identical to the original in the machine and supplied with an ‘o ‘ ring. It was easy to replace. The whole repair took 30 mins including stripping down the K2 and reassembly. Straight forward repair to extend the life of the pressure washer.
By Clive Birch - Cullompton
8th Sep 2023
Karcher Pressure Jet Washer
Great buy @ a great price simple to fit & machine up & running again. Very good assistance from Ransom, were a great help to me. A***** Thank you
By Lee Dodds - Ayr
23rd Jun 2020
very easy to fit
this part is easy to fit but would be better if it was not made of plastic then it would last longer
By mike - Bexleyheath
12th May 2020
She lives again!
Did the job, water no longer gushing out of the bottom of the washer..
By Guy Pritchard - Ivinghoe Aston
30th Apr 2020
Just the part I needed
I was able to replace the original Karcher elbow which split no no apparent reason. By doing this, the Karcher works perfectly again - much cheaper than buying a new machine !! Thanks to Ransom spares again
By Stephen Jones - St Albans
29th Aug 2019
Karcher part
Very good, well described products. Quickly delivered. Easy to fit. Thank you
By Jayne Airey - WETHERBY
5th Jun 2019
Karcher outlet elbow
Around great part, easy to fit. Good price and quality. Works a treat.
By Stephen walker - Leeds
23rd Apr 2019
Easy to fit replacement
My spare part arrived after quite a wait, considering the postage cost, I would have thought it arrive in 1-3 days, but took longer. An easy part to replace, but for mine to fail after a few uses, to me seems a design fault.
By Mal Essling - Aylesbury
8th Apr 2019
Does what it says
Easy to fit, fixed the issue - job done! What more can be said..
By Simon Thomas - Solihull
23rd Jan 2019
Questions And Answers
1 Answer(s)
Is Karcher part no. 5.064-396 the same as your part rs814761. I've already bought this part from elseware it should have fitted my jetwash k2 1.673-127.0. Unfortunately it was too big. It was suggested that karcher may have 2 parts for the same model. Your picture looks like mine. It would be good if you were able to confirm compatability. Thankyou.
Hi Martin, this part is the same as the Karcher part number 5.064-396.0.
1 Answer(s)
Hello, Can you advise how to remove broken part and fit new part? Thanks John
Hi John, unfortunately, we are unable to offer fitting advice. I would recommend contacting Karcher regarding this or speaking to an engineer.
1 Answer(s)
Is your part no 5.064-396.0
The same as part 5.064-396 or is their a difference
Hi Keith, 5.064-396 and 5.064-396.0 are the same.
